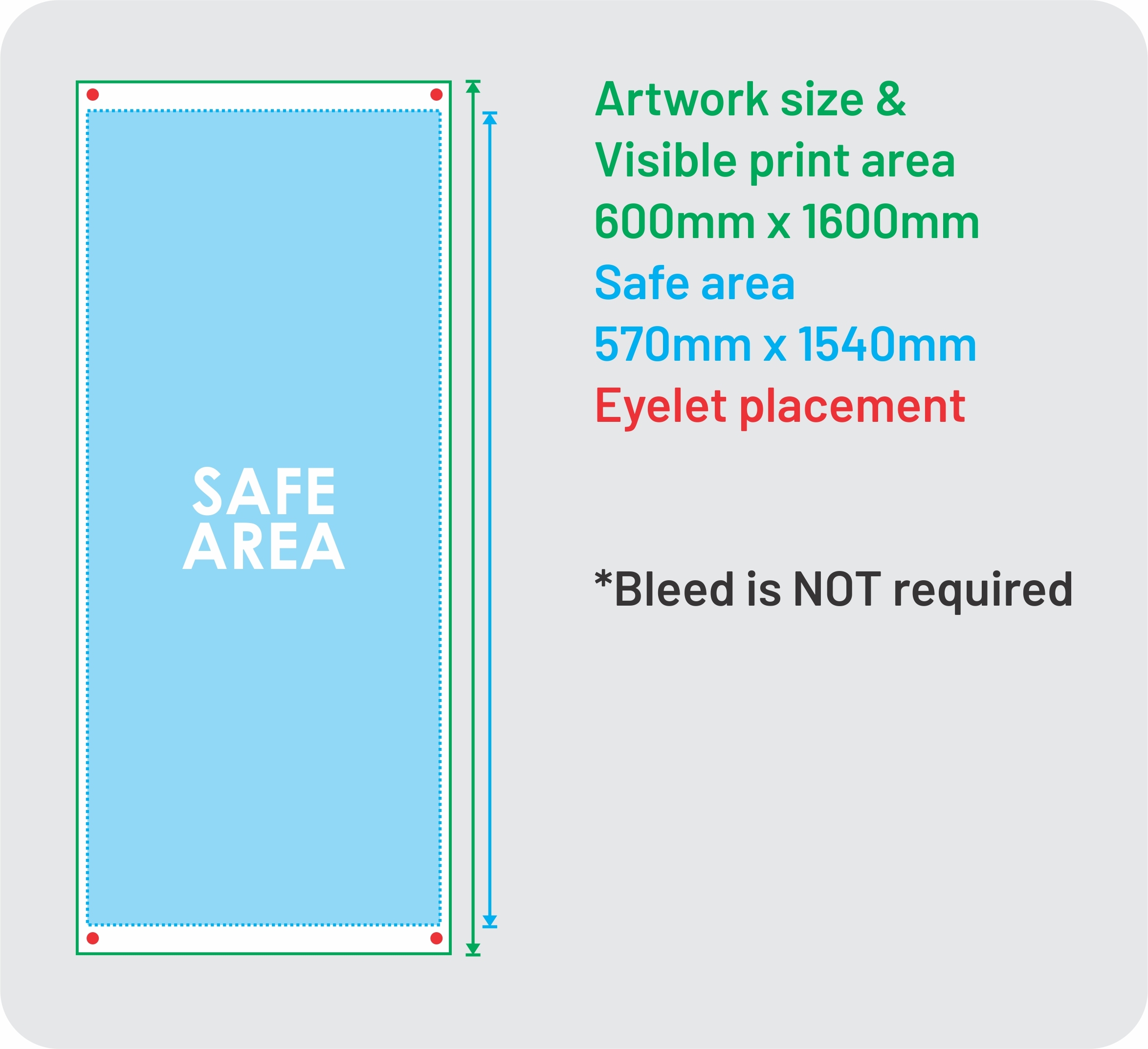

The finished visible size of X-frame Banners is either 600mm x 1600mm or 800mm x 1800mm
Bleed is not required. No trim, crop or registration marks.
Artwork must be supplied to size, 600mm x 1600mm (or 800mm x 1800mm)
The safe area for design elements is 570mm x 1540mm (or 770mm x 1740mm)
Background should be the full artwork size, and critical design elements should be kept within the safe area.
Safe area = 15mm on left & right side, 30mm on top & bottom.
It is important to keep within the safe area to allow space for the banner eyelets and to make sure they are not placed over important design elements.
Resolution: All raster images (photos, etc.) must be at a minimum resolution of 150 DPI at 100% scale for large format printing. 300 DPI is preferred for optimal quality.
Preferred colour mode: CMYK
Fonts must be completely imbedded or converted to curves
Flatten layers to reduce file complexity
Flatten all transparency effects (e.g., drop shadows, glows, gradients) to avoid rendering issues in CorelDRAW.
Rasterize effects where necessary.
All design files must adhere to the specifications outlined in our comprehensive design brief, which can be accessed here
